Modular network termination with 2.5G performance for your Point-to-Point deployment

The Genexis XG6846C is a high-performance, operator-grade Ethernet ONT designed for modern Point-to-Point fiber networks. Powered by the latest Airoha platform and the Genexis IOWRT software stack, it brings a major performance uplift to the XG6846 series—enabling seamless migration from 1G to 2.5G services while maintaining compatibility with existing installations like the XG6846 FiberTray. The WAN offers a 1G/2.5G FTTH SFP port and a 100M/1G/2.5G RJ-45 WAN/EXT port and on the LAN side, it features one 2.5GE and three 1GE ports

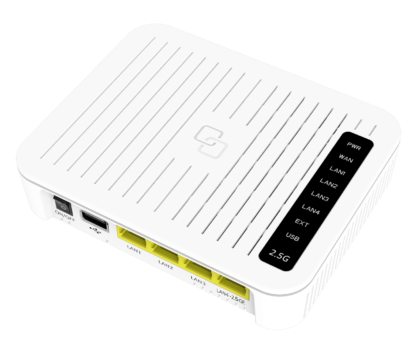

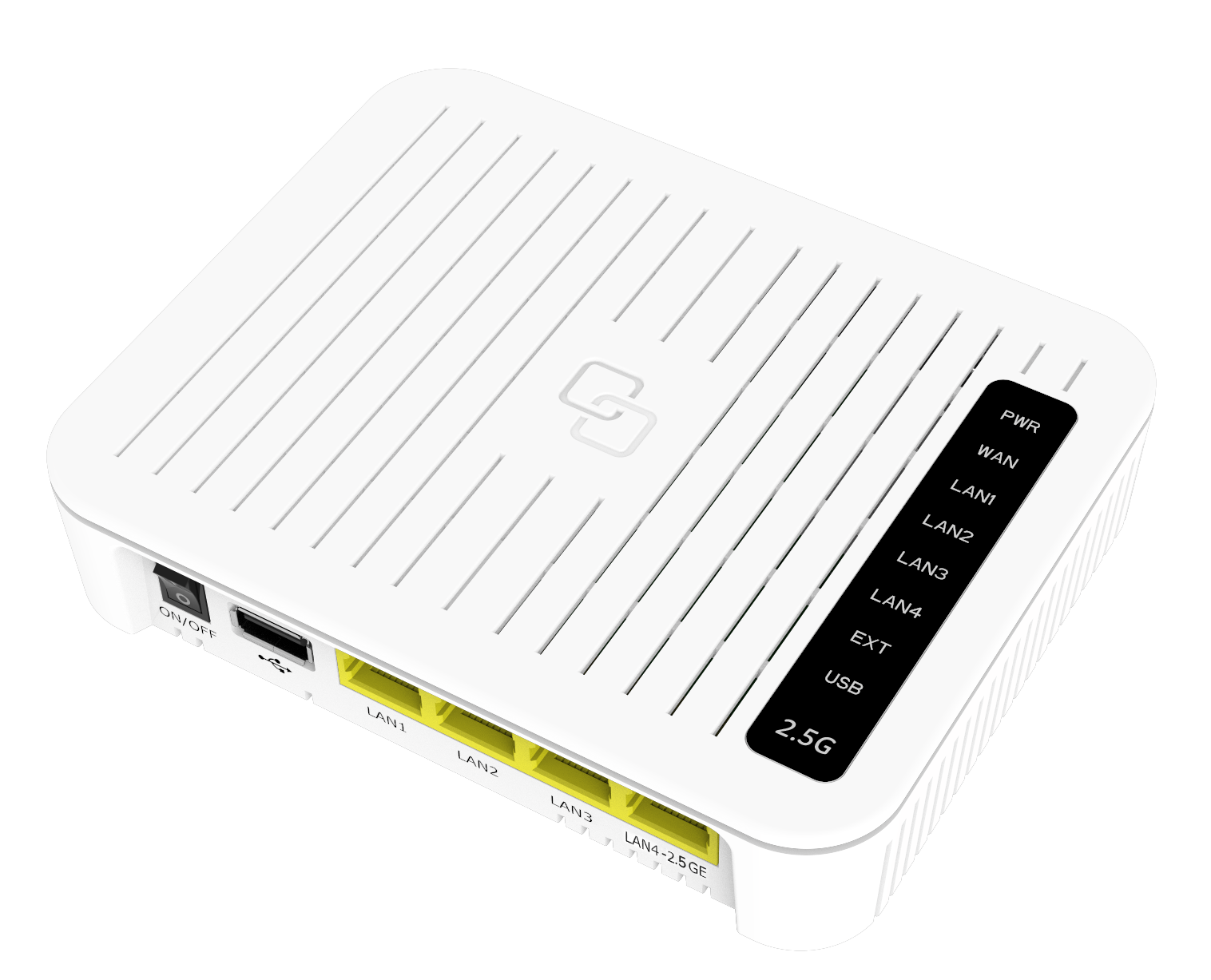

XG6846C

WAN port
0 2.5GE SFP or 2.5GE RJ-45 WAN/EXT
LAN ports
0 (1x 2.5GE + 3x 1GE)
Port
0 USB2
Recycled plastics
0 %

General specifications

  • Dimensions (HxWxD) 28x110x140 mm
  • Weight 320 gr incl PSU
  • Operating temperature 0 - 45°C
  • Storage temperature -20 - 85°C
  • Operating humidity 5% ~ 95% (non-condensing)
  • Storage humidity 5% ~ 95% (non-condensing)

Power consumption (EU-CoC-BBE)

  • Input 12VDC / 1.5A
  • Idle mode 4.34 W (EEE enabled)
  • On mode 5.24 W (EEE enabled)
  • Standard 802.3az Energy Efficient Ethernet (EEE)

Interface specifications

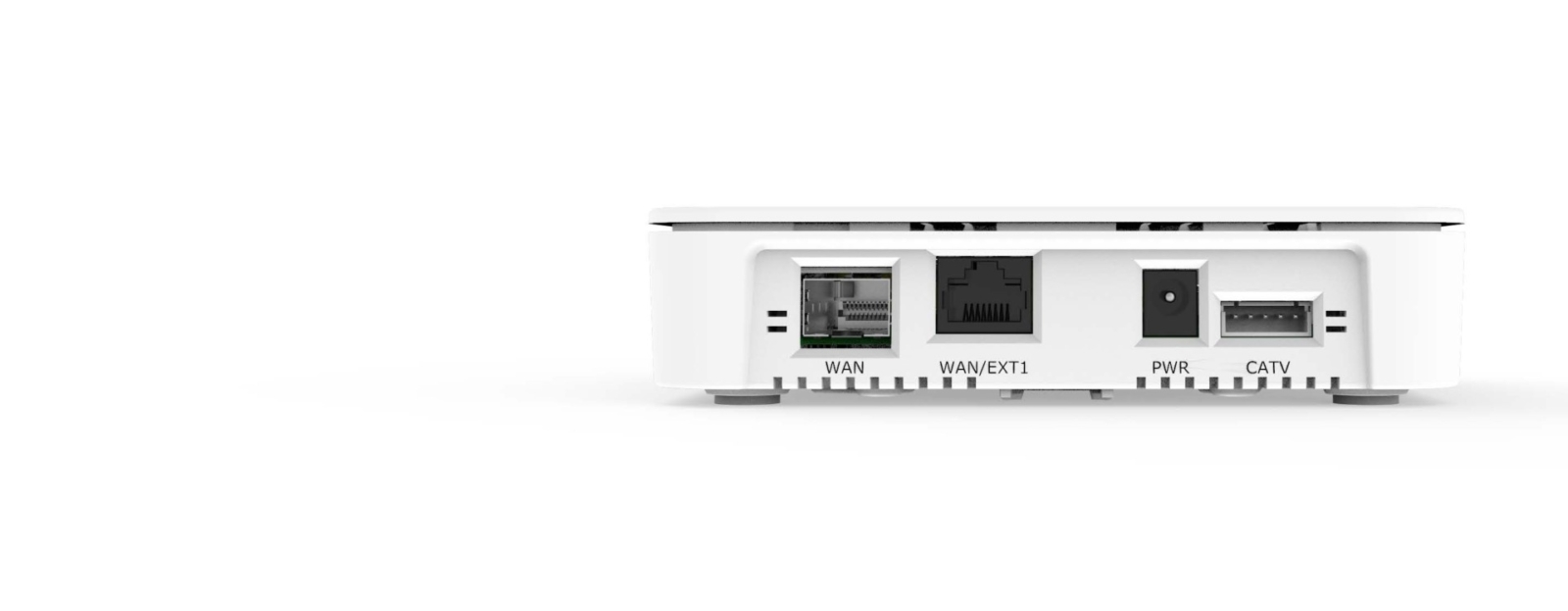

  • WAN interface 1x 1G/2.5G FTTH SFP WAN (no coding)
  • WAN interface 1x 100M/1G/2.5G RJ-45 WAN/EXT (if no SFP)

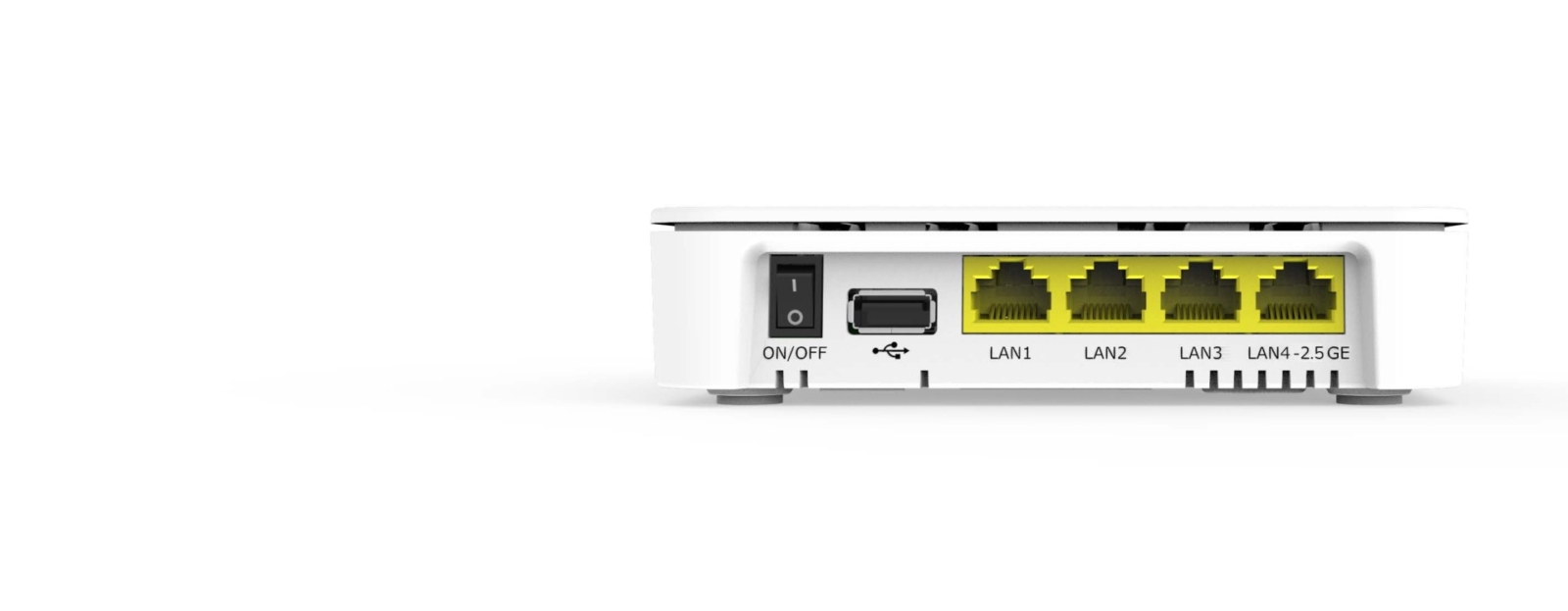

  • LAN interface 1x 100M/1G/2.5G
  • LAN interface 3x 100M/1G
  • USB 1x USB 2.0
  • Standards 802.3u/802.3x, auto MDI/MDIX, speed sensing

CATV Option (in the FiberTray)

  • Module CATV-103
  • Wavelength 1550 nm
  • Frequency range 47 MHz – 870 MHz
  • RF output connector F-female
  • Input connector Simplex SC/APC
  • Impedance 75 Ohm
  • Features AGC, Power ON/OFF via GPIO, weak signal alarm

Regulatory compliance

  • EMC Directive 2014/30/EU
  • Low Voltage Directive 2014/35/EU
  • RoHS Directive 2011/65/EU + (EU) 2015/863
  • REACH EC Regulation 1907/2006
  • FCC 47 CFR Part 15 (Subpart B)
  • ISED ICES-003 / RSS-Ge
  • EU-CoC-BBE Compliant
  • PSTI Compliant
  • ITU-T K.21 standard compliancy

XG6846C downloads

Here, you can access all the relevant downloads for the XG6846C. Available resources include datasheets and quick installation guide. If you need additional information or have any questions, please don’t hesitate to contact a Genexis sales representative.
