Efficiently enabling mixed deployments

Greenfield and brownfield deployments require a different design approach to cater for each specific scenario. While the FiberTwist is ideal for greenfield rollouts, brownfield scenarios with an existing third‑party FTU are just as easily covered. The FiberTwist Bracket-2-DIY allows you to continue enjoying all unique benefits of our FiberTwist ONTs . The Bracket-2-DIY is easily installed via its mounting plate with pre‑installed tape, no screws or tools needed, and sticks directly to the wall. The bracket simply clicks on the mounting plate with a light push, after which any FiberTwist active unit can be installed with a single twist, making it fully Do-It-Yourself in seconds.

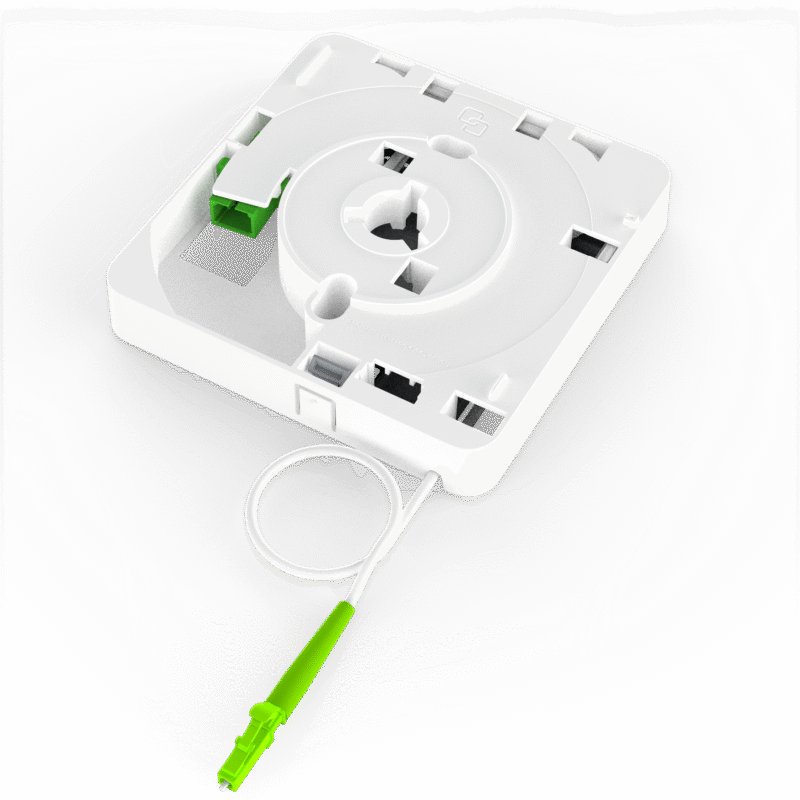

The FiberTwist Bracket‑2 offers a flexible range of patch configurations, including an external fiber cable with the appropriate connector for seamless third‑party FTU integration, or the option of an SC patch‑in coupler. To ensure a smooth installation experience, the DIY mounting plate is always included by default.

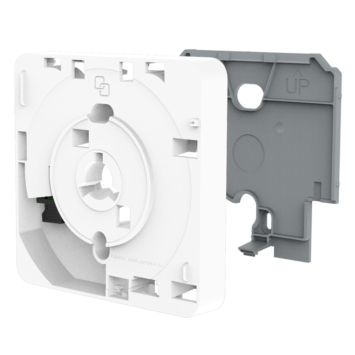

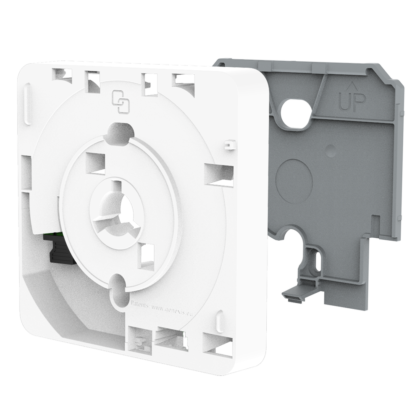

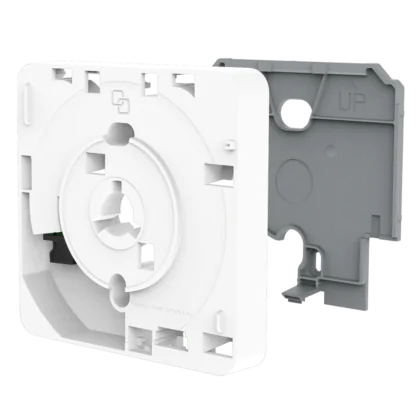

The FiberTwist Bracket-2-DIY

Optional
0 x patch option
Recycled plastics
0 %

For every FTU

 Any third–party FTU can connect to the FiberTwist with the active unit using a fiber optic patch cable

Recycled plastics

The FiberTwist Bracket-2 comes with 70% recycled plastics to reduce environmental footprint

DIY options

Including DIY Bracket mounting plate or optional full DIY package with preinstalled ONT

Preinstalled options

Optional preinstalled patch-in coupler or preinstalled external patch cable

Future-proof with the DIY installation

The FiberTwist Bracket is designed to ensure a fast and easy installation by the end user through its optional Do-It-Yourself mounting option. Future network upgrades can also be installed by the end user, making it an ideal solution to address the shortage of skilled installers and to eliminate truck rolls.

Reduce installers visits

Customers are relieved from having to stay at home for an installer when switching suppliers with the DIY option. The FiberTwist active unit connects easily to any FTU with a single twist, eliminating the need for installers and reducing operational costs. No installer visit is required, which boosts customer satisfaction and your brand image.

General specifications

  • Dimensions (HxWxD) 110x110x19 mm
  • Weight 53 g

Interface specifications

  • Mounting plate Optional
  • LC/APC cable output (green) Optional
  • LC/APC cable output (green) Optional
  • External patch cable 1x 1m pre-assembled patch cable

Regulatory compliance

  • CIE IEC 62368
  • UL94HB flammability class
  • RoHS 3 compliant

FiberTwist Bracket-2-DIY Downloads

Here, you can access all the relevant downloads for the FiberTwist Bracket-2-DIY. Available resources include brochures and datasheets. If you need additional information or have any questions, please don’t hesitate to contact your account manager.
