Home CX30, AX3000

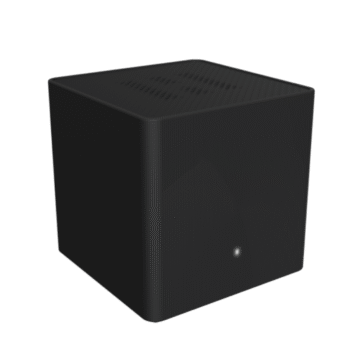

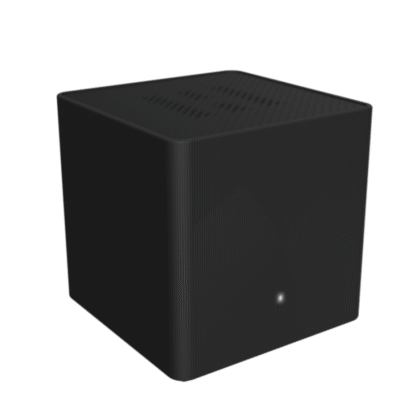

 Genexis Home CX30 provides the end-user with next generation Wi-Fi technology on 2.4Ghz and 5Ghz band, (Wi-Fi 6). Connect one or two Home CX30 to your Elite HX30 or Aura E650 and you get superfast Wi-Fi covering every corner in a home of 750m2. The Home CX30 is powered by IOWRT, the most advanced operating system for mesh and gateways, based on openWRT.

Home CX30

Wi-Fi
0
WAN/LAN
0 x 1GE
LAN
0 x 1GE

With the Wi-Fi 6 Mesh router, you have a robust Wi-Fi solution that can provide a strong signal throughout the whole house.

Home CX30

Nordic Design

With premium fabric front

Wi-Fi Dual Band

802.11 AX 2.4 + 5 GHZ

High Speed

Up to 3000 Mbps

EasyMesh™

Whole home Wi-Fi coverage

Logo of European Commission
Our Home CX30 meets the EU requirements of the Radio Equipment Directive (RED)
See RED declaration

General specifications

  • Dimensions (HxWxD) 110x110x110 mm
  • Weight 460 gr
  • Power supply voltage 12 V DC/ 1.5 A
  • Operating temperature 0-40°C
  • Storage temperature -30°C to 70°C
  • Relative humidity 10% - 95%

Power consumption (EU-CoC-BBE)

  • Idle mode 8.2 W
  • On mode 9.5 W

Interface specifications

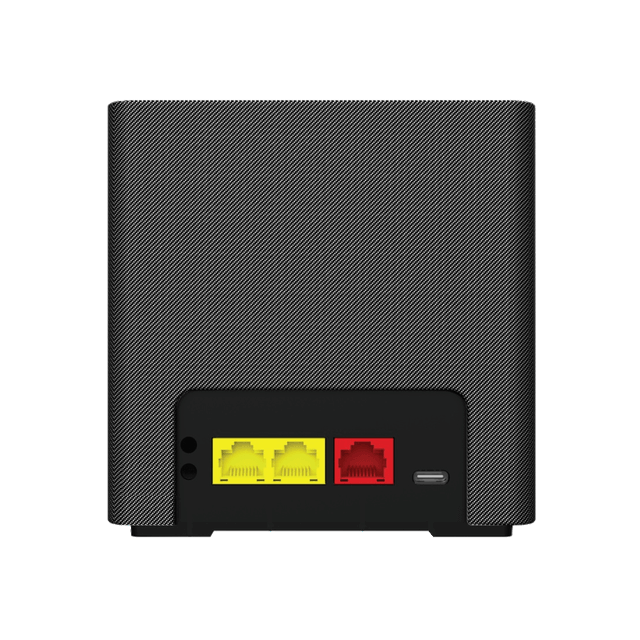

  • WAN interface 1x 10/100/1000 RJ45
  • LAN interface 2x 10/100/1000 RJ45
  • WLAN interface 2x2 MU-MIMO 802.11ax 2.4 GHz
  • 3x3 MU-MIMO 802.11ax 5 GHz

Regulatory compliance

  • EU Radio Equipment Directive 2014/53/EU
  • EU-CoC-BBE power consumption
  • Energy Related Products Directive 2009/125/EC
  • CE Safety Directive 2014/35/EU
  • UKCA Safety Regulations 2016
  • RoHS and REACH Directive 2011/65/EU
  • UK PSTI Compliant
  • Other ITU-T K.21 standard compliancy
Logo of European Commission
Our Home CX30 meets the EU requirements of the Radio Equipment Directive (RED)
See RED declaration

Home CX30 Downloads

Here, you can access all the relevant downloads for the Home CX30. Available resources include brochures, datasheets, and RED declarations. If you need additional information or have any questions, please don’t hesitate to contact your account manager.
