An easy upgrade for better coverage and higher speed
To refresh legacy home networks without operational friction, your customers deserve a straightforward step up. The Elite HX40 pairs a 2.5‑gigabit WAN with practical LAN connectivity, Wi‑Fi 6, and Wi‑Fi EasyMesh™, making it a painless upgrade for existing Elite models. The result is steadier coverage, cleaner speed tests, and fewer support calls, so connected devices across the home perform as promised.

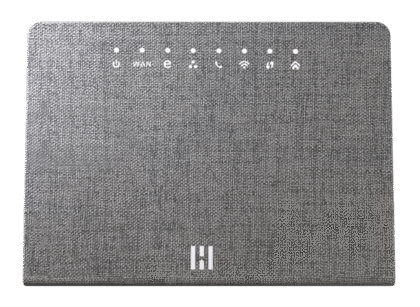

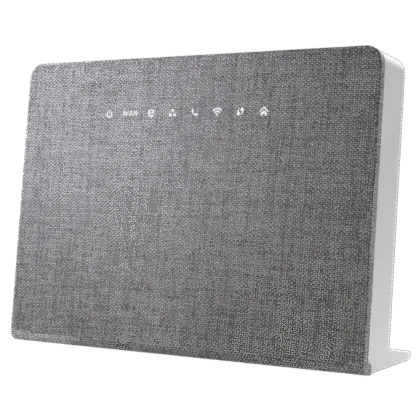

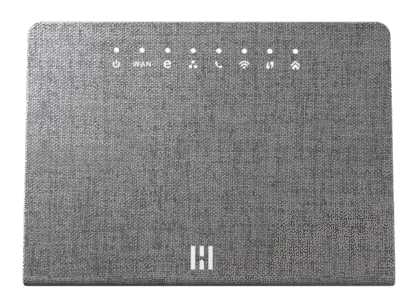

Elite HX40
Upgrade your home network with stronger Wi‑Fi 6 coverage and a 2.5Gbps link for higher‑speed plans.
Powerful performance
The Elite HX40 is a robust Wi-Fi 6 gateway built for high-density environments powered by the award-winning IOWRT OS. It delivers AX3600-class speeds with 4×4 MU-MIMO on both bands and includes a 2.5GE WAN port alongside four Gigabit LAN ports, as well as support for VoIP/FXS. Elite HX40 is a very reliable choice for homes with many connected devices.

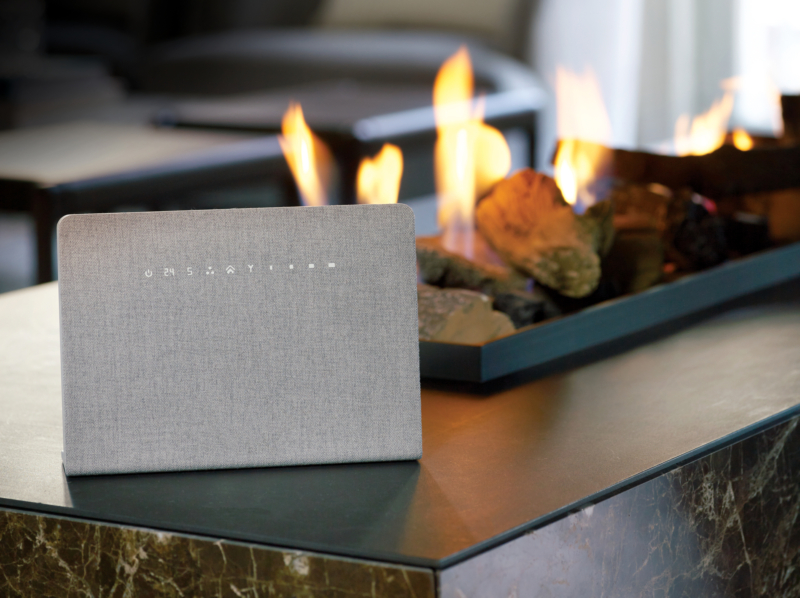

Elegant design
The Elite HX40 has a modern and compact design with a fabric front that fits anywhere in the home. There is also a wall mounting kit included for the users that prefer that type of installation.
Easy to install, use, manage and support
The Elite HX40 is easy to install and use, while its open-standard foundation makes it easy to manage for operators and ISPs. Management is further simplified with the Genexis EasyWiFi App, its compatibility behind any ONT, and a user-friendly WebGUI based on USP.
Sustainable choice
The Elite HX40 complies with the EU Code of Conduct for Broadband Equipment, and its packaging is made from 100% recycled brown carton, which is also recyclable.
The Ultimate Wi-Fi Experience with EasyMesh™
The Elite HX40 is an ideal residential gateway to initiate, manage, and expand an EasyMesh network with additional extenders. This ensures optimal Wi-Fi connectivity throughout the entire home. Its intelligent steering capabilities balance network load and direct mobile devices to the best access point, providing the best possible Wi-Fi experience as users move around their homes.
General specifications
- Dimensions (HxWxD) mm 165x214x80 mm
- Weight 480 grams
- Power supply voltage 12V DC / 2A
- Operating temperature 0°C to 40°C
- Storage temperature -30°C to 70°C
- Relative humidity 10% - 95%
Power consumption (EU-CoC-BBE)
- Idle mode 8.0 W
- On mode 9.5 W
Interface specifications

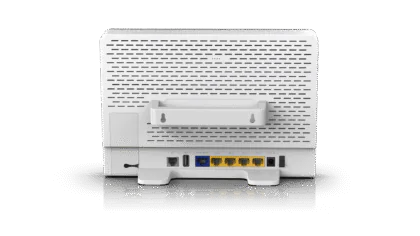

- WAN interface 1x 100/1000/2500 Mbps Base-T Ethernet (RJ45)
- LAN interface 4x 100/1000 Mbps Base-T Ethernet (RJ45)
- WLAN interface 4x4 MU-MIMO 802.11ax 2.4 GHz WiFi
- 4x4 MU-MIMO 802.11ax 5 GHz WiFi
- Voice interface 1x FXS-port (RJ11)
- USB interface 1x USB 2.0 port
Regulatory compliance
- EU Radio Equipment Directive 2014/53/EU
- EU-CoC-BBE power consumption
- Energy Related Products Directive 2009/125/EC
- CE Safety Directive 2014/35/EU
- UKCA Safety Regulations 2016
- RoHS and REACH Directive 2011/65/EU
- Other ITU-T K.21 standard compliancy
Elite HX40 Downloads
Here, you can access all the relevant downloads for the Elite HX40. Available resources include brochures and datasheets. If you need additional information or have any questions, please don’t hesitate to contact your account manager.
