Reliable Wi-Fi 6 for everyday fiber plans
To meet growing demand for dependable fiber performance at scale, your customers’ homes deserve a gateway that just works. The Elite HX30 delivers that balance with a 2.5‑gigabit WAN, a mix of high‑speed and standard LAN ports, Wi‑Fi 6, and Wi‑Fi EasyMesh™ for seamless whole‑home coverage. With voice support and remote management built in, the Elite HX30 ensures everyday devices – from consoles and TVs to laptops and smart speakers – run at the speeds they’re entitled to, without installation complexity or unnecessary cost.

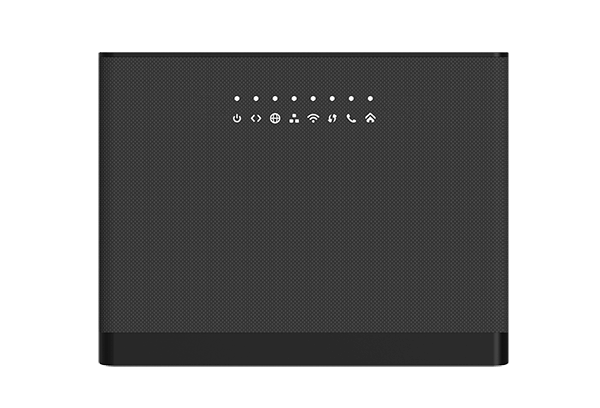

Elite HX30
Enjoy fast, reliable Wi‑Fi 6 for everyday streaming, gaming, and browsing plus a 2.5Gbps connection for your fiber service
Powerful performance
The Elite HX30 is a high performance Wi-Fi 6 gateway built for modern homes powered by the award-winning IOWRT OS. It delivers AX3000-class speeds and includes 2.5GE WAN and 2.5GE LAN ports, as well as support for VoIP/FXS. The Elite HX30 is a very capable gateway for high speed broadband deployments.
Elegant design
The Elite HX30 has a modern and compact design with a fabric front that fits anywhere in the home. There is also a wall mounting kit included for the users that prefer that type of installation.
Easy to install, use manage and support
The Elite HX30 is very easy to install and use, while its open-standard foundation makes it easy to manage for operators and ISPs. Management is further simplified with the Genexis EasyWiFi App, its compatibility behind any ONT, and a user-friendly WebGUI based on USP.
Sustainable choice

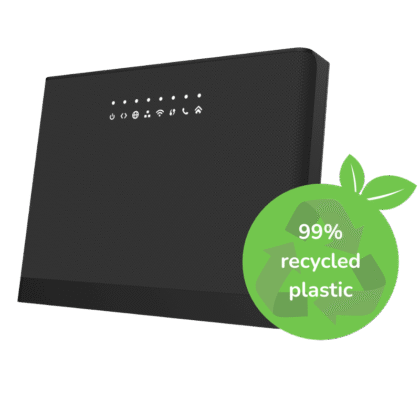

Designed with sustainability in mind, the Elite HX30 uses 99% recycled plastics and is built for refurbishment. It complies with the EU Code of Conduct for Broadband Equipment, and its packaging is made from 100% recycled brown carton, which is also recyclable.
The Ultimate Wi-Fi Experience with EasyMesh™
The Elite HX30 is an ideal residential gateway to initiate, manage, and expand an EasyMesh network with additional extenders. This ensures optimal Wi-Fi connectivity throughout the entire home. Its intelligent steering capabilities balance network load and direct mobile devices to the best access point, providing the best possible Wi-Fi experience as users move around their homes.
General specifications
- Dimensions (HxWxD) mm 165x214x80 mm
- Weight 480 grams
- Power supply voltage 12V DC / 2A
- Operating temperature 0°C to 40°C
- Storage temperature -30°C to 70°C
- Relative humidity 10% - 95%
Power consumption (EU-CoC-BBE)
- Idle mode 9.92 W
- On mode 11.46 W
Interface specifications
- WAN interface 1x 100/1000/2500Mbps Base-T Ethernet (RJ45)
- LAN interface 1x 100/1000/2500Mbps Base-T Ethernet (RJ45)
- 3x 100/1000Mbps Base-T Ethernet (RJ45)
- WLAN interface 2x2 MU-MIMO 802.11ax 2.4 GHz WiFi
- 3x3 MU-MIMO 802.11ax 5 GHz WiFi
- Voice interface 1x FXS-port (RJ11)
- USB interface 1x USB 2.0 port
Regulatory compliance
- EU Radio Equipment Directive 2014/53/EU
- EU-CoC-BBE power consumption
- Energy Related Products Directive 2009/125/EC
- CE Safety Directive 2014/35/EU
- RoHS and REACH Directive 2011/65/EU
- Other ITU-T K.21 standard compliancy
Elite HX30 Downloads
Here, you can access all the relevant downloads for the Elite HX30. Available resources include brochures and datasheets. If you need additional information or have any questions, please don’t hesitate to contact your account manager.
