High performance Wi‑Fi 7 Gateway for 10Gpbs XGS‑PON networks
To scale ten‑gigabit symmetric passive optical network services with confidence, your customers’ homes deserve a gateway designed for that network. Aura XGS780 pairs the XGS‑PON uplink with a 10‑gigabit LAN port, additional multi‑gig and gigabit LAN, dual‑band Wi‑Fi 7, and Wi‑Fi EasyMesh™. The result is a smooth hand‑off from fiber to every corner of the home, so connected devices can perform at the plan rate you sell – without hidden bottlenecks or operational surprises.
The Aura XGS780
Bring 10Gbps XGS‑PON service to life with Wi‑Fi 7 and multi‑gig connectivity for every device in your home.
Powerful Performance
The Aura XGS780 is a future-proof, all-in-one Wi-Fi 7 gateway powered by the awardwinning IOWRT OS. It features XGS-PON WAN, 10GE + 2.5GE LAN, and a FXS/VoIP interface. On Wi-Fi it delivers BE7200 speeds with 4×4 MU-MIMO on both band as well as advanced features like MLO. The Aura XGS780 brings the in-home Wi-Fi experience of the future already today.
Elegant Design
Featuring a sleek, elegant and wallmountable design, the Aura XGS780 blends seamlessly into any interior. The user wont mind having it visible in the home which will further enhance the Wi-Fi performance and coverage.
Easy to install, use, manage and support
The Aura XGS780 is very easy to install and use, while its open-standard foundation makes it easy to manage for operators and ISPs. Management is further simplified with the EasyWiFi App, its compatibility behind any OLT, and a user-friendly WebGUI based on USP.
Sustainable Choice

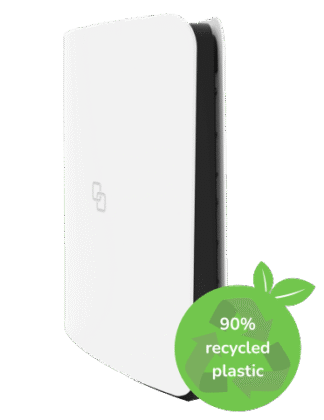

Designed with sustainability in mind, the Aura XGS780 uses 90% recycled plastics and is built for refurbishment. It complies with the EU Code of Conduct for Broadband Equipment, and its packaging is made from 100% recycled brown carton, which is also recyclable.
The Ultimate WiFi Experience with Wi-Fi EasyMesh™
The Aura XGS780 is an ideal residential gateway to initiate, manage, and expand an EasyMesh network with additional extenders. This ensures optimal Wi-Fi connectivity throughout the entire home. Its intelligent steering capabilities balance network load and direct mobile devices to the best access point, providing the best possible Wi-Fi experience as users move around their homes.
General specifications
- Dimensions (HxWxD) mm 217x170x55 mm
- Weight 618 gr
- Power supply voltage 12V DC / 2.5A
- Operating temperature 0°C to 40°C
- Storage temperature -25°C to 55°C
- Relative humidity 10% - 95%
Power consumption (EU-CoC-BBE)
- Idle mode 10.23 W
- On mode 13.31 W

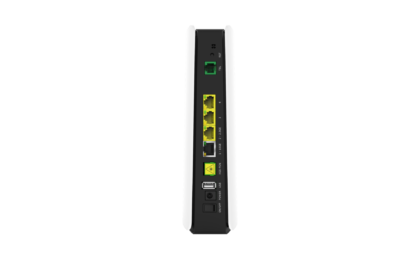

Interface specifications
- WAN interface 1x XGS-PON Interface (SC/APC)
- LAN interface 1x 100/1000/2500/10000 Mbps Base-T Ethernet (RJ45)
- 1x 100/1000/2500 Mbps Base-T Ethernet (RJ45)
- 2x 100/1000 Mbps Base-T Ethernet (RJ45)
- WLAN interface 4x4 MU-MIMO 802.11be 2.4 GHz WiFi
- 4x4 MU-MIMO 802.11be 5 GHz WiFi
- Voice interface 1x FXS-port (RJ11)
- USB interface 1x USB 2.0 port
Regulatory compliance
- EU Radio Equipment Directive 2014/53/EU
- EU-CoC-BBE power consumption
- Energy Related Products Directive 2009/125/EC
- CE Safety Directive 2014/35/EU
- UKCA Safety Regulations 2016
- RoHS and REACH Directive 2011/65/EU
- UK PSTI Compliant
- Other ITU-T K.21 standard compliancy
Aura XGS780 Downloads
Here, you can access all the relevant downloads for the Aura XGS780. Available resources include brochures, datasheets, and RED declarations. If you need additional information or have any questions, please don’t hesitate to contact your account manager.
